ORION

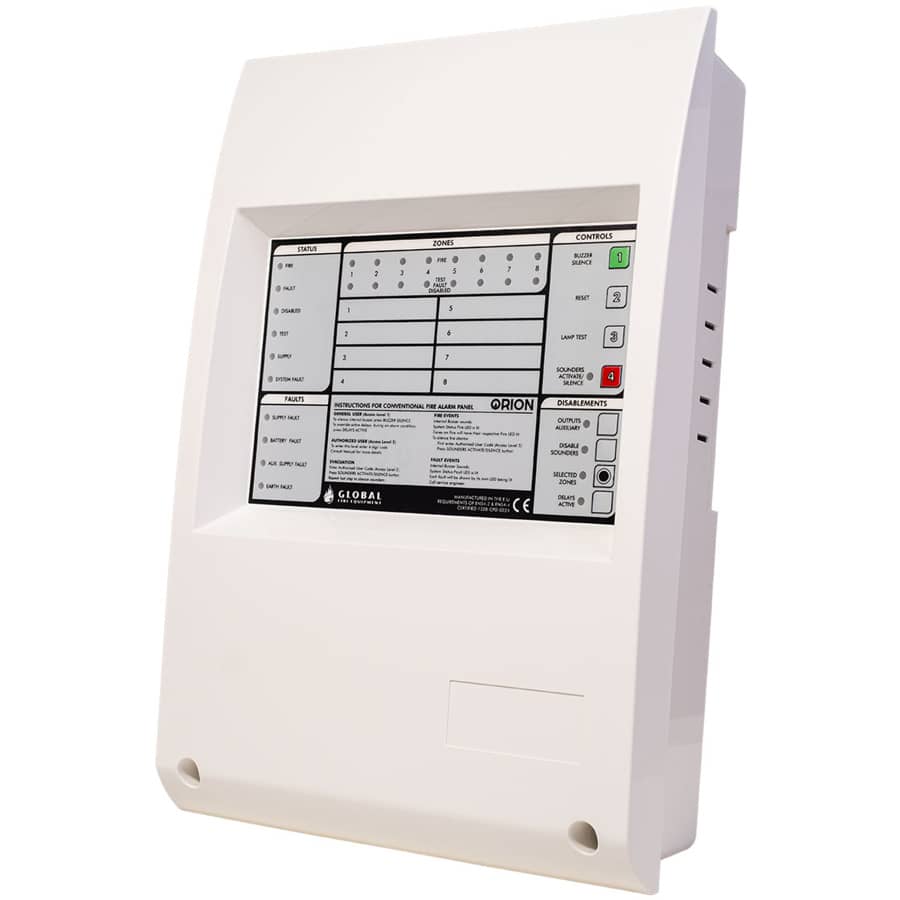

The ORION range of conventional control panels features three models with 2, 4 and 8 zones of detection. Housed in a stylish modern ABS housing, the ORION is the ideal control panel for smaller installations.
Designed and manufactured to comply with the requirements of EN54 parts 2 and 4 (1998), the ORION uses active end of line monitoring to permit head removal protection as required by BS5839 (detector bases must be fitted with diode).
Programmable zone coincidence and alarm delay timer (0-10 min) are standard features to help reduce false alarms.
The one-man test facility enables simple and rapid testing of the system during commissioning and maintenance operations.
TECHNICAL SPECIFICATIONS
| PRIMARY SUPPLY VOLTAGE – IN | 230V AC +10% -15% |
| PRIMARY SUPPLY VOLTAGE- OUT | 28.5V DC nominal |
| PRIMARY SUPPLY CURRENT-OUT | 1.7A @ 28.5V DC nominal (max.) |
| SECONDARY SUPPLY VOLTAGE | 21.0 min. – 27.2 max. V DC – BAT charger o/p 28V DC |
| SECONDARY SUPPLY CURRENT OUTPUT | 1.85 Amp maximum @ 20 o C |
| INTERNAL BATTERY CAPACITY – MAXIMUM | 2 x 12V x 7Ah Sealed VRLA Lead Acid Batteries |
| MAINS FUSE | 4 A 250 V Slow Blow – 20 mm |
| BATTERY FUSE | 1.85 Amp – Resettable |
| NUMBER OF DETECTION ZONES | 2 / 4 / 8 |
| ZONE CURRENT – QUIESCENT / ALARM | 10 mA / 60 mA maximum |
| MAX. CABLE RESISTANCE / CAPACITANCE | 40 Ohms / 0.470 uF |
| END OF LINE MONITORING | Active EOL – 10uF/50V Bipolar Capacitor |
| BS5839 DETECTOR REMOVAL COMPLIANT | YES provided diodes are fitted to detector base |
| DEVICES PER ZONE | 32 maximum – EN54 pt.2 |
| ALARM RESISTANCE VALUE: INPUTS | 270 – 1000 Ohms |
| MAXIMUM CURRENT: OUTPUTS | 1,85A maximum current drive for both S1 & S2 circuits; 100 mA for RM output |
| VOLTAGE OUTPUT | 27.5V DC nominal |
| END OF LINE RESISTOR: S1 & S2; RM | S1 & S2: 10K Ohms – 1/4 Watt; RM: 4K7 Ohms – 1/4 Watt |
| AUXILIARY RELAY OUTPUT | 1 Fire (COM-NC-NO) – 1 Fault (COM-NC) non-supervised |
| RELAY CONTACT RATING | 30V DC – 2A / 230V AC – 0.25A (resistive loads) |
| EVACUATION AND RESET | Non-Latching – Voltage free contact |
| MAXIMUM HUMIDITY | 95% RH Non-Condensing |
| PROTECTION RATING | IP30 |
| OPERATING TEMPERATURE | -10ºC to 50ºC |
| WEIGHT | 1.7 Kg – 7 Kg (inc. 2 x 7 AH 12 V bat.) |
| DIMENSIONS | 273 (L) x 107 (W) x 404 (H) mm |

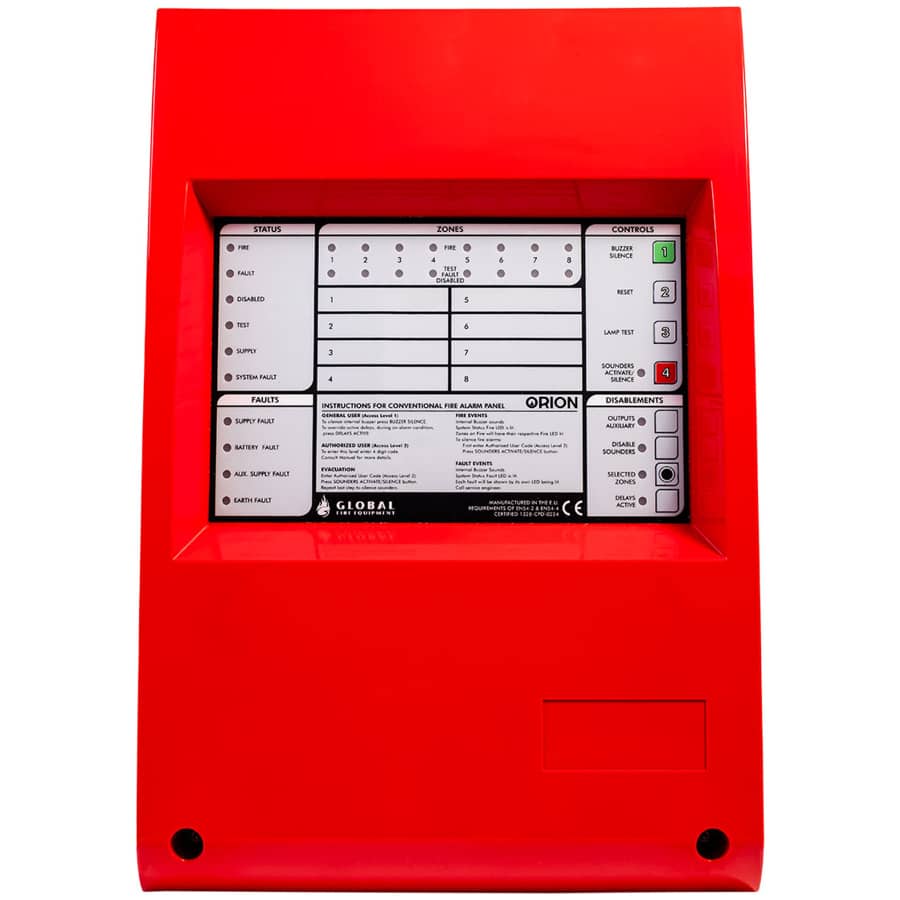

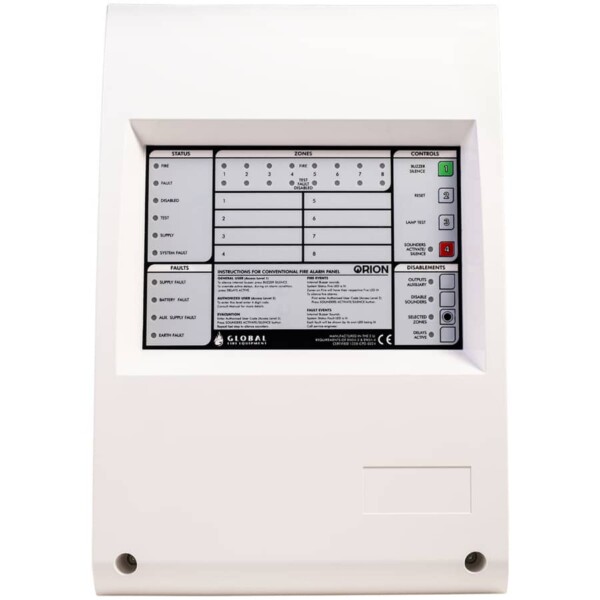

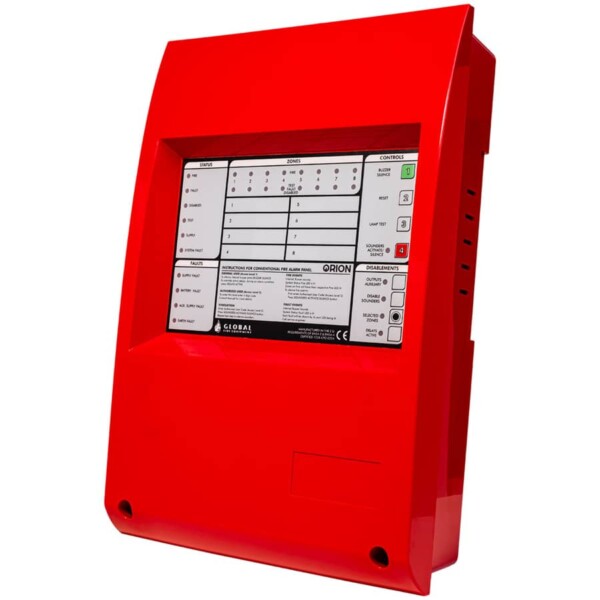

| COLOUR | White or Red |
