VALKYRIE CS IP65

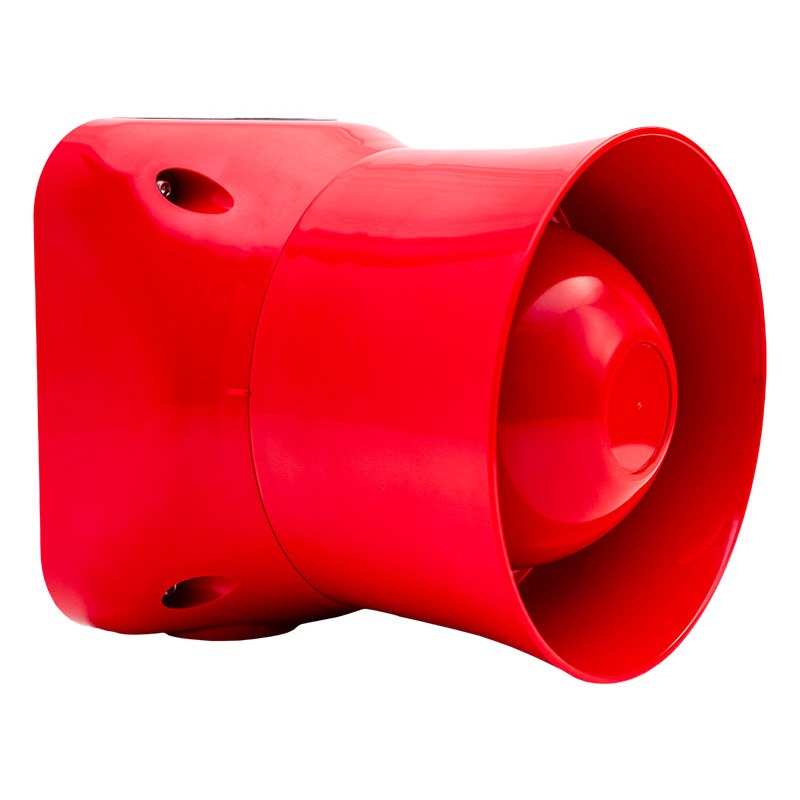

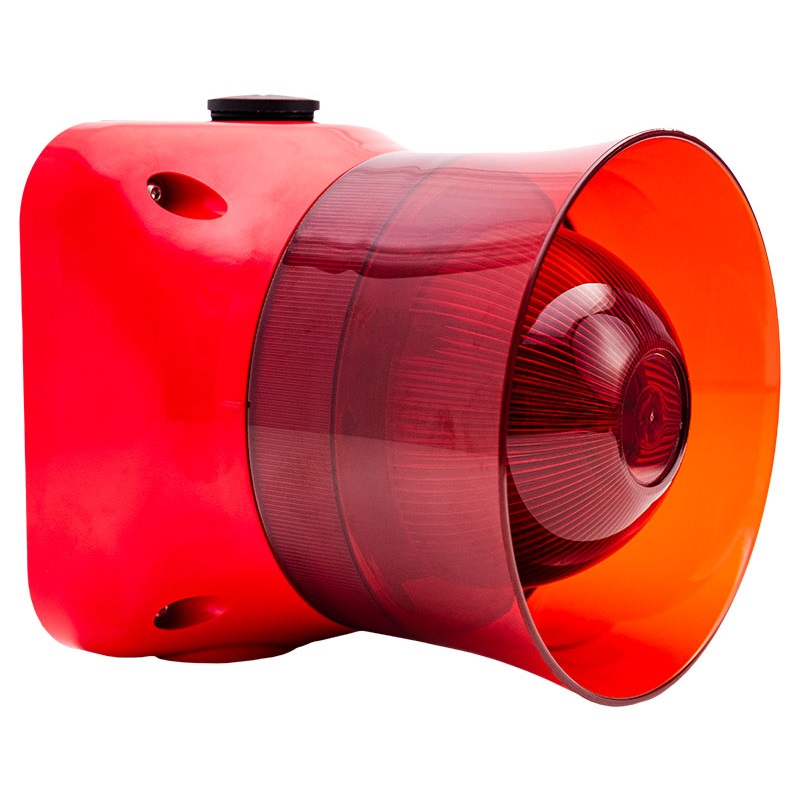

The VALKYRIE CS IP65 is a wall mounted conventional sounder/beacon with low power consumption. It is specifically designed to be used outdoors. Four different tones are available and selected using DIL switches 1 and 2.
Both continuous and pulsing outputs are provided via separate negative supply connections, allowing for the presence of differentiated evacuation and alert sounds.
TECHNICAL SPECIFICATIONS
| SUPPLY VOLTAGE | 20 V to 30 V DC |
| CURRENT – SOUNDER/ BEACON ACTIVE | 10 mA – 280 mW @ 28 V DC |
| MAXIMUM SOUNDER OUTPUT | 97 dB (@ 1 meter – 30 V DC) |
| MAX. CABLE SIZE | 2.5 mm² |
| OPERATING TEMPERATURE | -20ºC to 70ºC |
| MAX. HUMIDITY | 95% RH Non-Condensing |
| CASE MATERIAL | ABS and PC |
| COLOUR | Red |
| PROTECTION CATEGORY | IP65 – Type B – Outdoor use |
| DIMENSIONS | 112 (D) x 110 (H) mm inc. base |
| WEIGHT | 315 g / 350 g – including packaging |
