GFE MCPE C

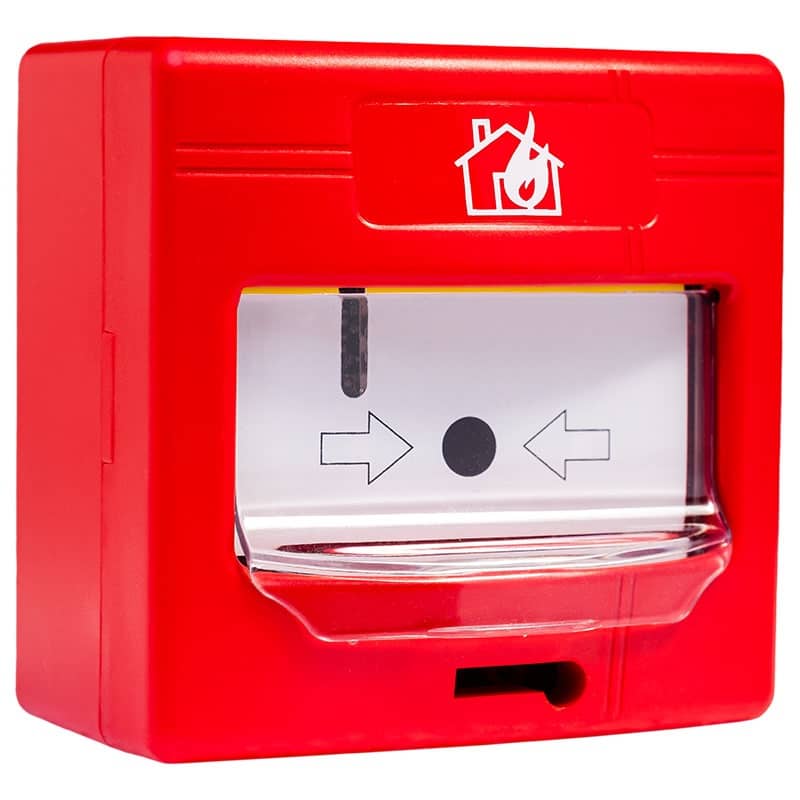

The GFE-MCPE-C is a conventional Manual Call Point, designed and manufactured to comply with EN54-11 and compatible with all GFE conventional control panels. A bi-colour LED flashes green when the unit is connected to a control panel and is illuminated red when in Alarm.
The unit is supplied complete with a hinged flap which protects the trigger element from accidental activation and reduces malicious activations as two actions are required in order to activate the device. This unit can be both surface and flush mounte
TECHNICAL SPECIFICATIONS
| OPERATION VOLTAGE | 25 (+5; -15) [V DC] |
| CURRENT CONSUMPTION – QUIESCENT | 200 uA |
| CURRENT CONSUMPTION – ALARM | 50mA @ 24V DC nominal – Alarm Resistance 470 Ohms max. |
| OPERATING TEMPERATURE | -10ºC to +55ºC |
| STORAGE TEMPERATURE | -30°C to +60°C |
| INGRESS PROTECTION GRADE | IP24D – Type A – Indoor Use |
| MAX. HUMIDITY | 95% RH Non-Condensing @ 40°C |
| COLOUR / CASE MATERIAL | Red / ABS & Clear/ PC – Flame Retardant – Rating 94 V0 |
| DIMENSIONS – SURFACE MOUNTED | 92.6 (W) x 92.6 (H) x 60.1 (D) mm |
| DIMENSIONS – FLUSH MOUNTED | 92.6 (W) x 92.6 (H) x 27.8 (D) mm |
| WEIGHT | 152 g includes back box and fixings |
d and it can be easily reset after activation using the key supplied.
