OCTO+ LB

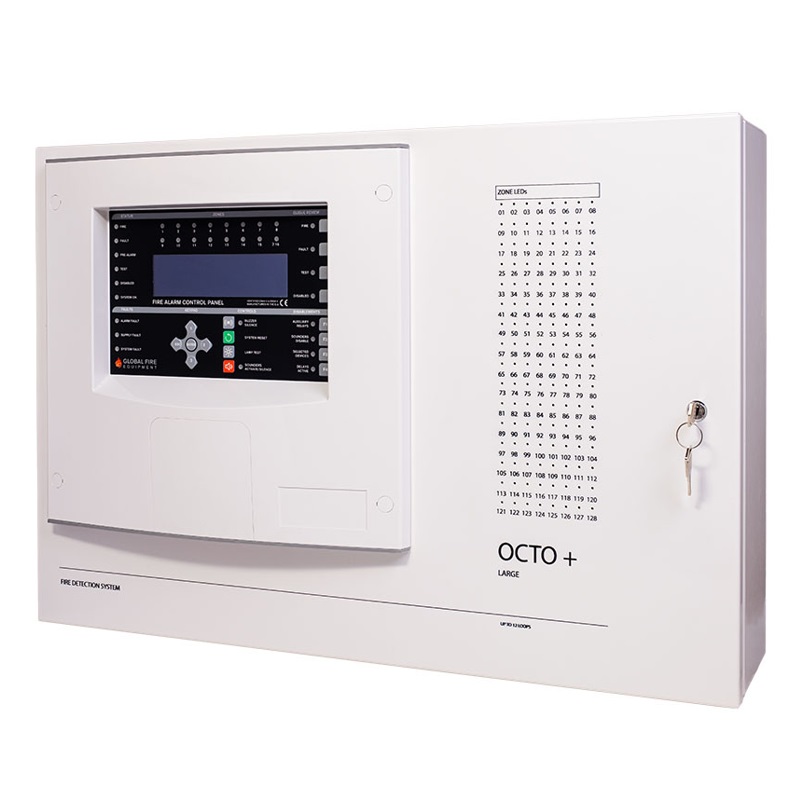

The OCTO+ LB (Large Box) is an expansion version of our OCTO+ fire alarm control panel. This panel features an expandable loop capacity from 1 to 12 addressable analogue loops (giving a total of 128 loops in a single system) in a large aluminium box that has enough capacity for 4 12Ah x 12V back-up batteries.
Designed with an advanced full multi-master peer-to-peer networking solution, it allows for extreme resilience in very large distributed systems.
TECHNICAL SPECIFICATIONS
| POWER SUPPLY RATING | 90V AC to 230V AC |
| PRIMARY DC SUPPLY | 28.5V DC @ 7.5A (Max.) / 28.5V DC @ 10A (Max.) |
| SECONDARY SUPPLY | 21.6V DC Min. – 27.2V DC Max. – Battery charger: 27.5V DC |
| BATTERIES (INTERNAL) | 2 x 24V 12AH (Max.) |
| QUIESCENT CURRENT (NO DEVICES) | 75mA / 125mA/ 175mA (4, 8 and 12 Loops) |
| AUX POWER OUTPUT | 24V DC: 900mA total (300 mA each NODE, having up to 3 switched outputs) |
| MAXIMUM LOOP OUTPUT CURRENT | 4 to 12 loops – Max. 165mA per loop quiescent / Max. 900mA per loop peak |
| LOOP TOPOLOGY | Class A or B |
| DETECTOR CABLE | Firetuf 2 x 1,5 / max 2,000m or 2 x 2,5mm / max 3,000m |
| CONVENTIONAL SOUNDER CIRCUITS | up to 6500mA Max. current drive for both circuits – Fully monitored |
| AUX. RELAYS FIRE | up to 6 rated 2A @ 30V DC resistive / 0.5A @ 120V AC resistive / 0.25A @ 240V AC resistive |
| AUX. RELAY FAULT | up to 3 rated 2A @ 30V DC resistive / 0.5A @ 120V AC resistive / 0.25A @ 240V AC resistive |
| GRAPHICAL LCD DISPLAY | 240×64 pixels blue backlit |
| ZONE LEDS | Maximum 128 Zone LED / blocks of 64 LED |
| COMMUNICATION CHANNELS | 3x configurable communication ports and per each NODE |
| BMS OUTPUT | ODYSSEY (Graphical software), TCP IP-WEB (remote web monitoring), MODBUS RTU, ESPA 4.4.4 |
| SOFTWARE CONNECTION | USB type B |
| EVENT LOG | 10,000 messages |
| OPERATING / STORAGE TEMPERATURE | -10ºC to 50ºC |
| HUMIDITY | Max. 85% RH Non-Condensing |
| INGRESS PROTECTION / MATERIAL | IP30 / Aluminium |
| DIMENSIONS | 610 (L) x 420 (H) x 179,1 (W) mm |
| WEIGHT | 6,1Kg (no batteries) |
| COLOUR | White (RAL 9003) or Red (RAL 3001) |
