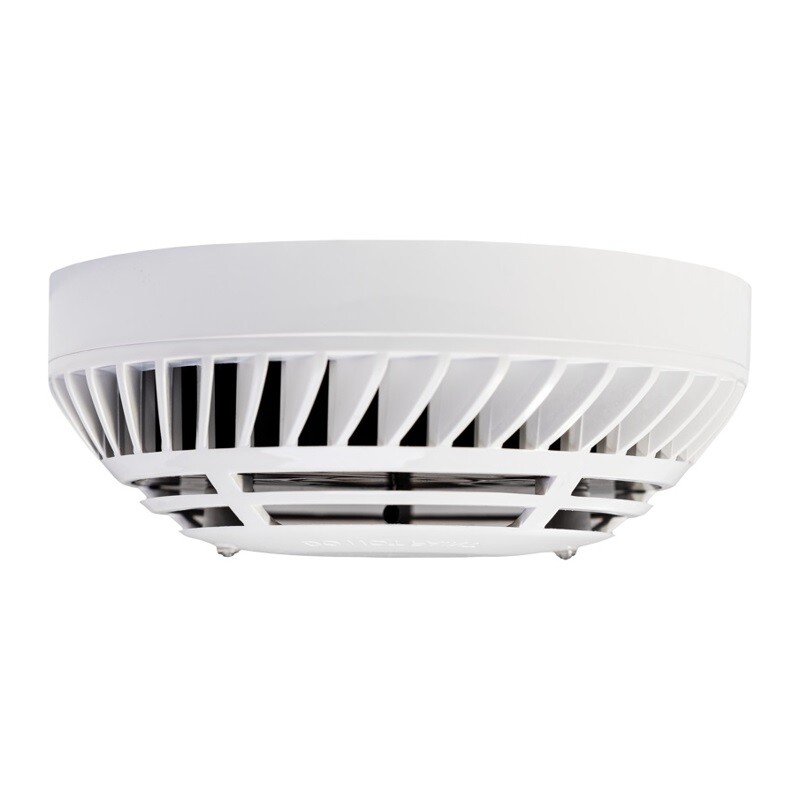

ZEOS C
The ZEOS-C series of fire alarm detectors has been designed to be exclusively compatible with the GFE’s range of conventional detection zones available in the following equipment:
- Conventional Panels ORION, ORION MINI, ORION EX and ORION-PLUS
- Addressable Zone Monitoring Units QUAD-ZMU and ZMU.
Certified to EN54-5 and EN54-7, the ZEOS-C series detectors are available in Smoke, Heat and Combined Smoke/Heat detector versions.
TECHNICAL SPECIFICATIONS
| SUPPLY VOLTAGE | 17-30 V DC |
| CURRENT – QUIESCENT | Heat: 7uA / Smoke: 33uA / Smoke & Heat: 35uA |
| CURRENT – DEVICE IN ALARM | 24 mA – Alarm LEDs |
| SENSITIVITY | According to EN54-5 or/and EN54-7 |
| CABLE SIZE | 0.5-2.5 mm² |
| RESET/START-UP TIMES | 20 seconds max |
| IP RATING | IP20 |
| COLOUR | White |
| CASE MATERIAL | ABS |
| MAX. HUMIDITY | 95% RH Non-Condensing |
| OPERATING TEMPERATURE (NORMAL) | 0ºC to 50ºC |
| OPERATING TEMPERATURE (TRANSIENT) | -10ºC to 85ºC |
| DIMENSIONS | 100 (D) x 50 (H) mm |
| WEIGHT | 144g included base |
| COMPATIBILITY | ORION, ORION MINI, ORION EX, ORION-PLUS, QUAD-ZMU and ZMU |
