Data sheet
INSTRUCTION MANUAL

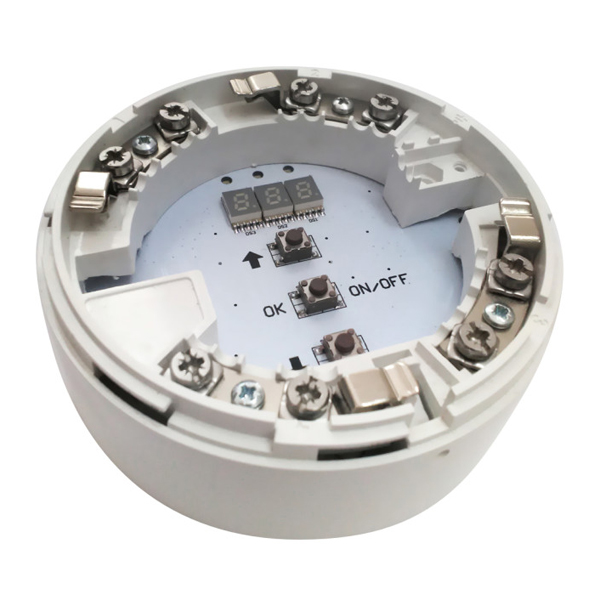

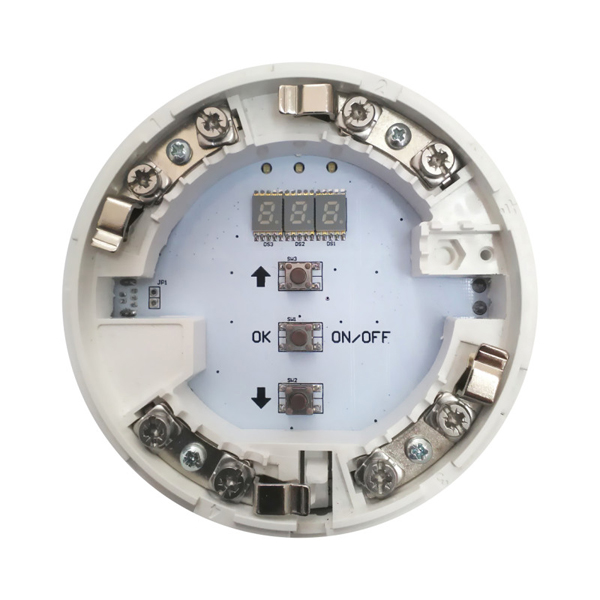

GFE ZEOS Programmer
The GFE-ZEOS-PROGRAMMER enables manual address assignment to all self-programmable devices. It should be used during maintenance and installation as an alternative to GFE’s addressable panels ASET mode. Additionally, it also allows installers to read the address of the device and read its analogue value.
TECHNICAL SPECIFICATIONS
| OPERATING VOLTAGE | 3.3 V (DC) |
| CHARGE CURRENT | 100 mA max |
| CHARGE VOLTAGE | 5 V DC (Mini USB) |
| CHARGE DURATION | 2 hours (max.) |
| AUTO POWER OFF | After 2 minutes |
| AUTONOMY | +500 operations |
| MAX. HUMIDITY | 95% RH Non-Condensing |
| OPERATING TEMPERATURE | 0ºC to 40ºC |
| DIMENSIONS | 86 (D) x 25 (H) mm |
| WEIGHT | 172 g |
