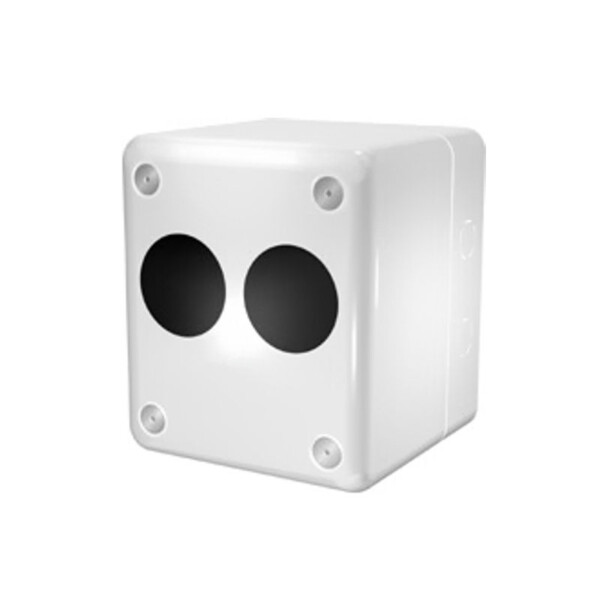

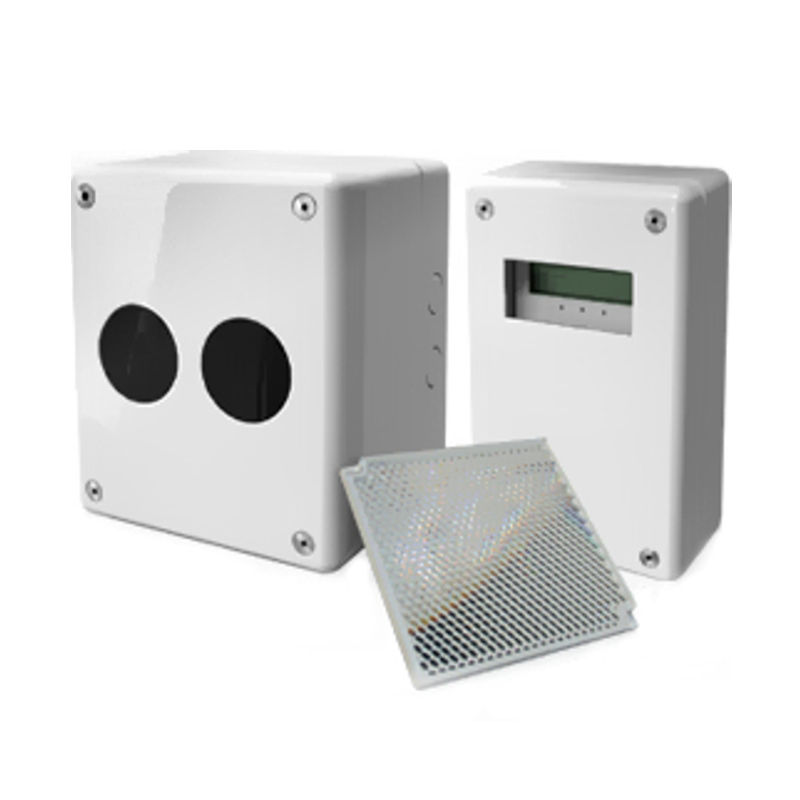

FIRE BEAM is the optimal solution to protect large areas with ceiling height greater than 4 metres. A motorized beam head will
self-align itself to the centre of the reflector when commissioning and will automatically keep alignment when building movement
occurs which will prevent unwanted false alarms.
Its low current consumption enables seamless integration with addressable systems via INPUT or ZMU modules. Another relevant
feature is related with its environment protection that makes FIRE BEAM a suitable solution for harsh industrial applications, in
situations where condensation may occur, filters with special coating widens the scope os usage.
TECHNICAL SPECIFICATIONS
| SUPPLY VOLTAGE / SUPPLY CURRENT | 10.2 to 40V DC / 3 mA (quiescent, alarm, fault) |
| NORMAL | Green LEDs Flashing – Controller Message |
| FAULT | Yellow LEDs Flashing – Controller Message / Change over relay (2A @ 30V DC) |
| ALARM | Red LEDs Flashing – Controller Message / Change over relay (2A @ 30V DC) |
| TEMPERATURE | -10°C to +55°C |
| HUMIDITY | 10 to 95% RH Non-Condensing |
| IP RATING | IP65 when suitably mounted and terminated |
| BEAM HEAD | 180 (H) x 155 (W) x 137 (D) mm / Weight 1.1 Kg |
| CONTROLLER (FIRE BEAM XTRA) | 185 (H) x 120 (W) x 62 (D) mm / Weight 0.55 Kg |
| 70KIT140 MID-RANGE REFLECTOR | 293 (H) x 293 (W) x 5 (D) mm / Weight 0.8 Kg |
| 140KIT160 LONG RANGE REFLECTOR | 394 (H) x 394 (W) x 5 (D) mm / Weight 1.8 Kg |
| ADAPTER | 270 (H) x 250 (W) x 5 (D) mm / Weight 0.6 Kg (mounts the Beam Head onto unistrut) |
