Data sheet
INSTRUCTION MANUAL
GFE SWR LMP

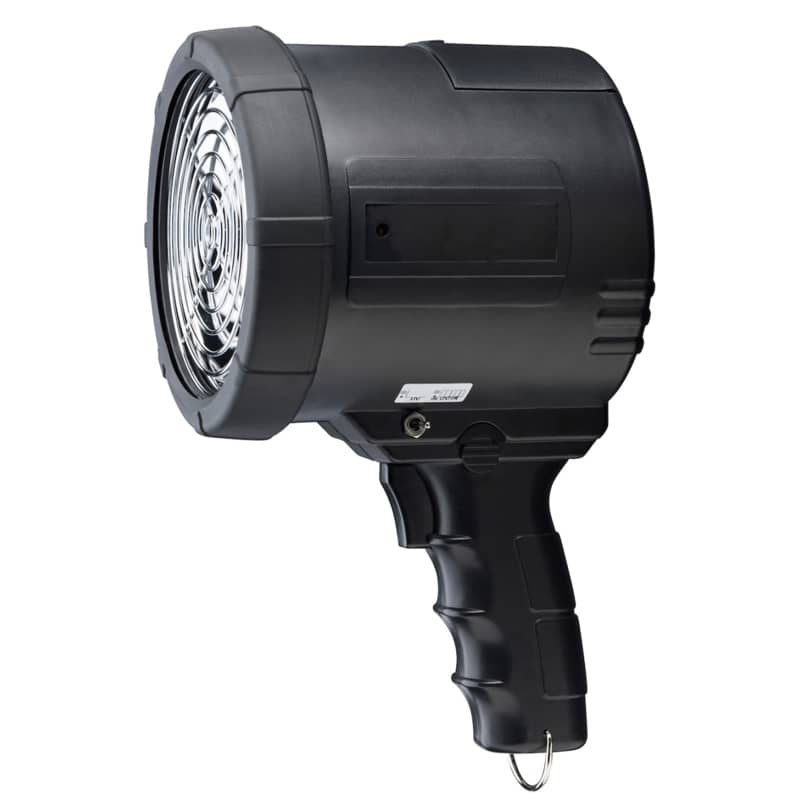

The non Ex GFE-SWR-LMP flame detector test lamp activates GFE-SWR series flame detectors namely: GFE-SWR-UVIR, GFE-SWR-UV and GFE-SWR-IR3. For all models the testing range is four metres. The GFE-SWR-LMP test lamp is non Ex, making it suitable for use in safe areas only.
The GFE-SWR-LMP is only compatible with the GFE-SWR series flame detectors. The test lamp is not suitable for flame detectors of other brands.
TECHNICAL SPECIFICATIONS

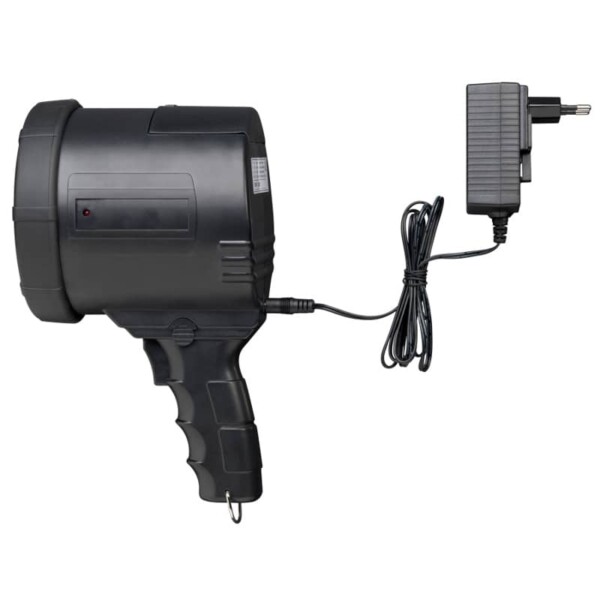

| BATTERY CHARGER | 100-240 V AC, 500 mA |
| BATTERY | Sealed Lead Acid battery, 12 Vdc / 2.7 Ah |
| BATTERY AUTONOMY | 10-15 minutes under optimal conditions and continuous use |
| LAMP | H3, 12 Vdc / 100 W |
| PROTECTION | IP30 |
| OPERATING TEMPERATURE | 4ºC to 40ºC |
| COLOUR / MATERIAL | Black / ABS |
| DIMENSIONS (BOX) | 440 (L) x 340 (W) x 280 (H) mm |
| WEIGHT | 5 kg |
