VULCAN 2 DS

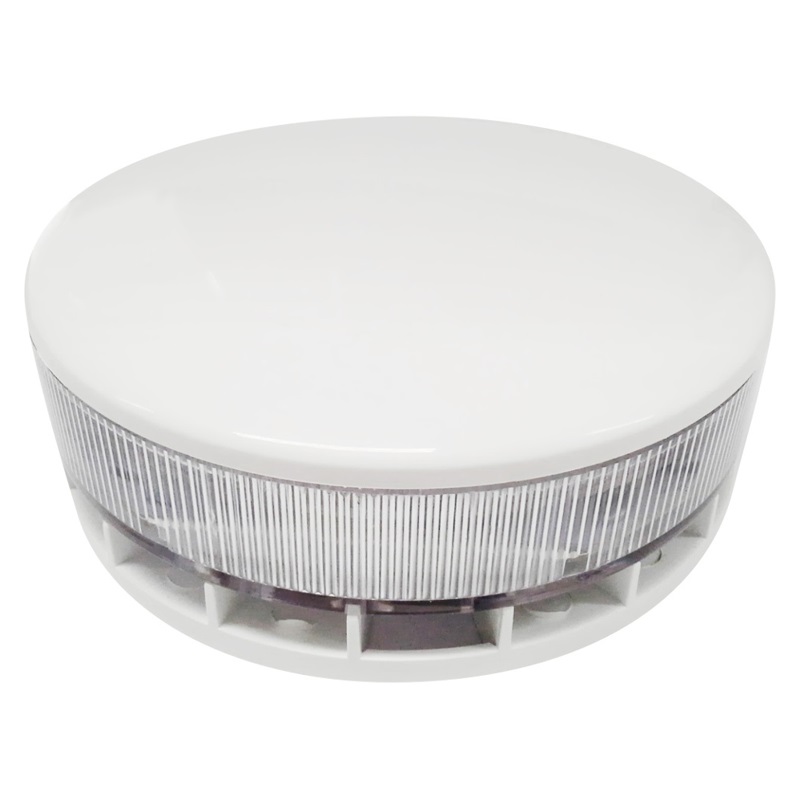

The addressable VULCAN 2 DS is available as a detector sounder, beacon or combined sounder/ beacon. This particular device enables a conventional detector to be connected to the addressable loop via the sounder and/or beacon. Versions incorporating a loop isolator are also available.
All VULCAN 2 DS devices have dip-switch address setting while tone selection is via a jumper . There is also a potentiometer which may be used to adjust the sound level if required.
TECHNICAL SPECIFICATIONS
| SUPPLY VOLTAGE | Loop Powered – 20V to 30V DC |
| LOOP CURRENT | 1.1 mA + conventional detector quiescent current |
| LOOP CURRENT – ALARM – 800 TO 1000 HZ | 4 mA sounder only – 5.5 mA inc. Beacon |
| LOOP CURRENT – ALARM – 2.0 TO 3.0 KHZ | 7 mA sounder only – 8 mA inc. Beacon |
| LOOP CURRENT – ALARM BEACON | 2.5 mA |
| LOOP CURRENT – ISOLATOR | 150 uA – added to device quiescent/ alarm current load |
| DETECTOR – ALARM CURRENT | 12 mA – add to addressable device alarm loop current |
| SOUNDER OUTPUT – LOW / HIGH FREQ | 84 / 88 dB @ 1 m |
| MAX. CABLE SIZE | 2.5 mm² |
| OPERATING TEMPERATURE | -10ºC to 55ºC |
| MAX. HUMIDITY | 95% RH Non-Condensing |
| COLOUR | White or Red |
| CASE MATERIAL | ABS – Transparent PC – FR rating 94V0 |
| DIMENSIONS | 100 (D) x 29 (H) mm – with Lid 37.5 (H) mm |
| WEIGHT | 100 g – 120 g with Lid |
