GFE MCPE AI IP67

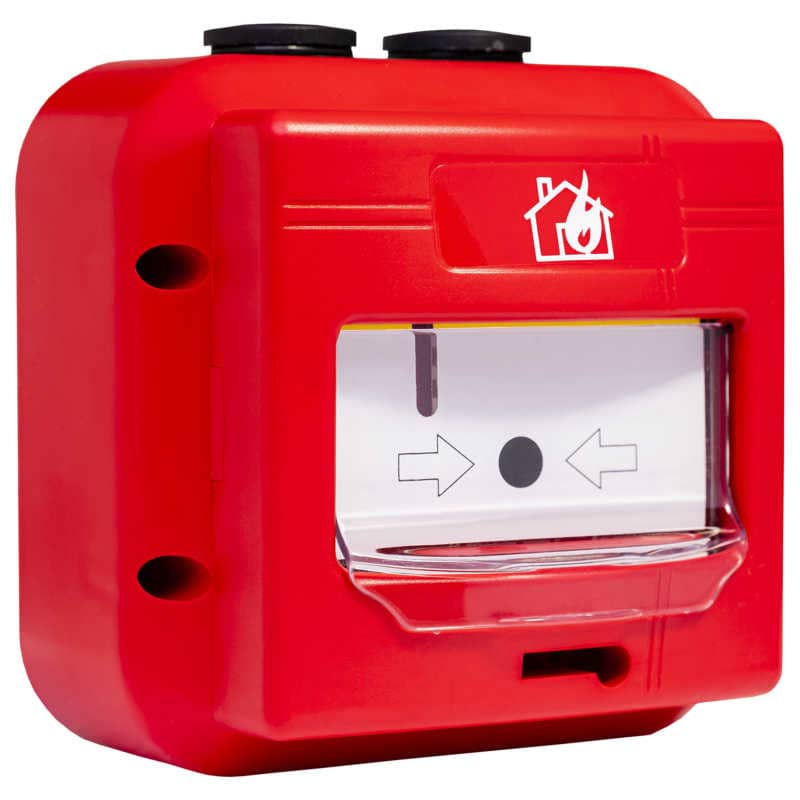

The GFE-MCPE-AI-IP67 is an Analogue Addressable Manual Call Point, designed and manufactured to comply with EN54-11, compatible with all GFE Addressable Control panels specially recommended for outdoor use.
The unit is supplied complete with a hinged flap which protects the trigger element from accidental activation and reduces malicious activations as two actions are required in order to activate the device.
The GFE-MCPE-AI-IP67 provides an ideal solution for GFE’s addressable fire alarm systems. Ideal for all outdoor applications such as oil rigs, ships, factories as well as wash down areas that are sensitive to broken glass.
TECHNICAL SPECIFICATIONS
| OPERATION VOLTAGE | 20-30 V DC |
| CURRENT – QUIESCENT | 650 uA |
| ALARM | 3.5 mA |
| OPERATING TEMPERATURE | -10°C to +55°C |
| STORAGE TEMPERATURE | -30°C to +60°C |
| COLOUR / CASE MATERIAL | Red / ABS & Clear/ PC – Flame Retardant 94 V0 |
| PROTECTION | IP67 – Type A – Outdoor Use |
| MAX. HUMIDITY | 95% RH Non-Condensing @ 40°C |
| DIMENSIONS | 111.9 (H) x 111.9 (W) x 81.3 (D) mm |
| WEIGHT | 262 g includes back box and fixings |
