GFE MCPE A

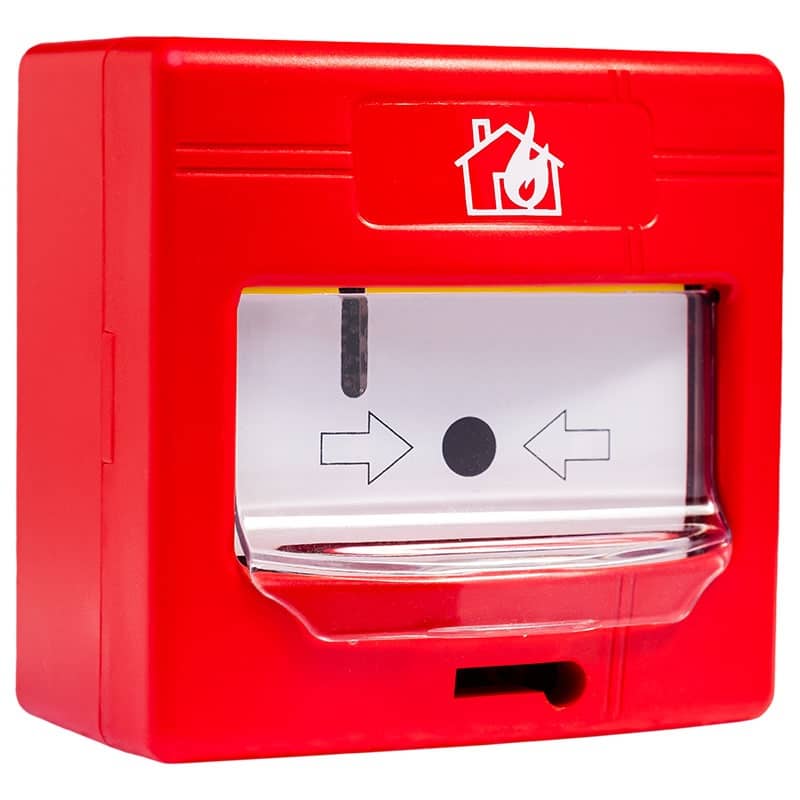

The GFE-MCPE-A is an analogue addressable Manual Call Point designed and manufactured to comply with EN54-11 and compatible with all GFE addressable control panels. With its enhanced communications mechanism, the typical response time when in alarm is approximately one second, depending on the number of call points connected to the device loop. A version incorporating a loop isolator is also available.
TECHNICAL SPECIFICATIONS
| OPERATION VOLTAGE | 20-30V DC |
| CURRENTE – QUIESCENT / ALARM | 500 uA / 3.5 mA |
| CABLE SIZE | 0.5-1.5 mm² |
| OPERATING TEMPERATURE | -10ºC to +55ºC |
| STORAGE TEMPERATURE | -30°C to +60°C |
| INGRESS PROTECTION GRADE | IP24D – Type A – Indoor Use |
| MAX. HUMIDITY | 95% RH Non-Condensing @ 40°C |
| COLOUR / CASE MATERIAL | Red / ABS & Clear/ PC – Flame Retardant – Rating 94V0 |
| DIMENSIONS – SURFACE MOUNTED | 92.6 (W) x 92.6 (H) x 60.1 (D) mm |
| DIMENSIONS – FLUSH MOUNTED | 92.6 (W) x 92.6 (H) x 27.8 (D) mm |
| WEIGHT | 152g includes back box and fixings |
